Testing Tables

Dafine Engineering offers wire harness test table frames with different application specific sizes and layouts.

Testing tables (boards, benches)

Table is equipped with automation controls, power supply, power outlets and data ports for peripherals. Tester, computer and other periferials are optional

  • Ergonomic, safe and productive workspace
  • Aesthetically appealing
  • Rigid powder coated metal structure
  • Soft replaceable protecting cushion in front
  • Swivel caster wheels
  • Forklift access ports
  • Work surface has removable cover plates
  • Fully modular for quick installation or reconfiguration of testing counterparts
  • Testing counterparts are flush with surface
  • Can be equipped with light fixture frame

Two basic table models available, other models could be made by customer specifics.

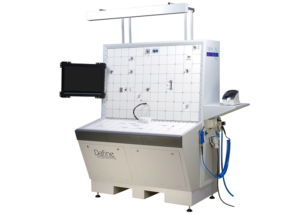

AS – series

AS – series is designed with 3D layout for complex cable harness. It offers most test positions as there is horizontal and vertical surface which can be equipped with testing counterparts. Available in two standard sizes: AS 1200 W and AS 2400 W

EVO – series

EVO – series is designed as 2D work environment. This more compact table is ideal for smaller harnesses. Available in several sizes: EVO 600 W, EVO 1200 W and EVO 2400 W.

HVS – series

EVO HVS – series is for high voltage testing. Table is designed to have as small footprint in factory floor as possible. Company Weetech high voltage tester W484-X PLUS is integrated into table. No more factory floor space wasting with separate tester rack and no exposed connections.

Tables Comparison

Type Dimensions WxDxH (mm) Weight (netto) Weight (brutto) Adapter surface Compressed air outlets Power out Testpoint cards Testpoints
AS 1200 W 1300 x 959 x 1676 225 359 1200 x 400
+
1200 x 800
110 + 10 24 VDC / 10 A
5 VDC / 8 A
16

1024

AS 2400 W 2500 x 959 x 1676 405  539 2400 x 400
+
2400 x 800
110 + 10  24 VDC / 10 A
5 VDC / 8 A

16 (32)

1024 (2048)

EVO 600W 700 x 1142 x 865 105 190,5 600 x 600 25 + 10 24 VDC / 10 A
5 VDC / 8 A
8 512
EVO 1200W 1300 x 1142 x 865 166 271 1200 x 600 50 + 10 24 VDC / 10 A
5 VDC / 8 A
16 1024
EVO 2400 W 2500 X 11205 X 865 276 459 2400 x 600 100 + 20 24 VDC / 10 A
5 VDC / 8 A
16 1024
HVS 2400 W 2500 X 11205 X 865 375 558 2400 x 600 50+10 24 VDC / 10 A
5 VDC / 8 A
6 or 18 HV
12 LV
264 or 792 HV
768 LV
